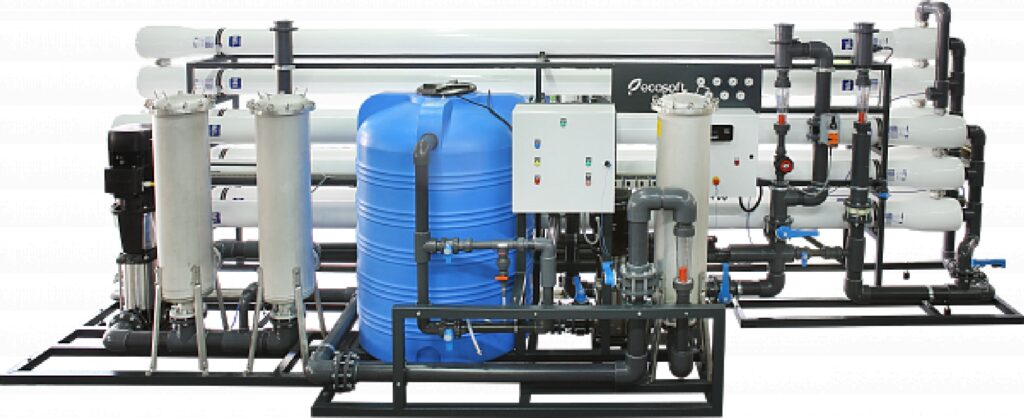

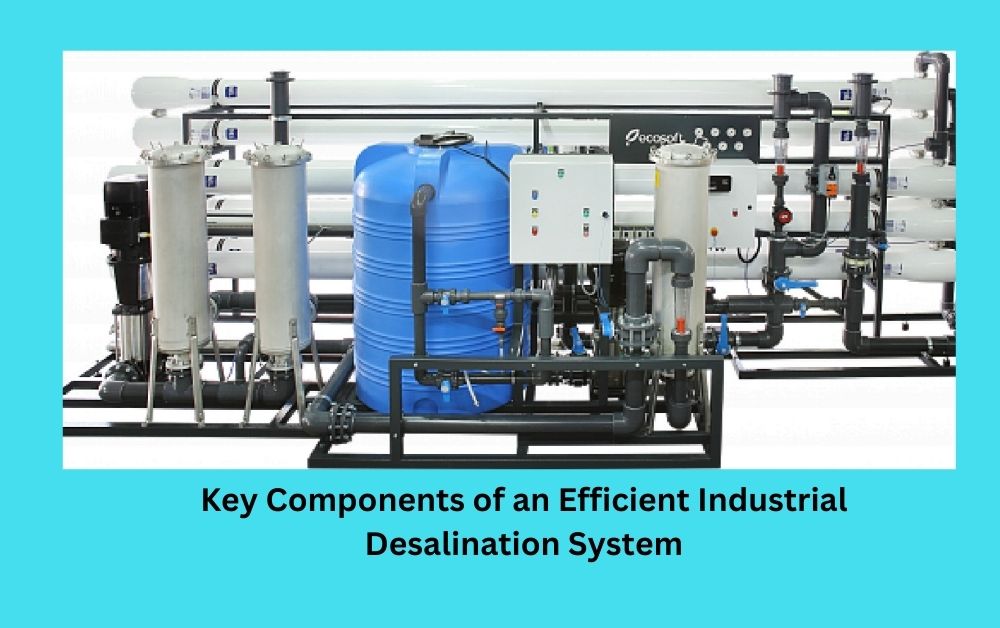

Key Components of an Efficient Industrial Desalination System
Industrial desalination systems are critical in counteracting the issue of global water shortages, particularly in areas with limited freshwater resources. The systems are implemented throughout different industries, such as power, oil and gas, mining, and manufacturing, to offer a sustainable and dependable freshwater supply. As the thirst for clean water grows, the need for effective and affordable desalination systems has never been greater. This blog will discuss the major parts of an efficient industrial desalination system, how they work, and why they matter for optimum performance.
1. Pre-treatment Unit
Pre-treatment is one of the integral components of industrial desalination processes. The water must be pre-treated before the primary method of desalination to eliminate suspended solids, large particles, and organic compounds. This prevents fouling, scaling, or membrane or thermal unit damage.
Some popular pre-treatment technologies include:
- Filtration (sand filters, multimedia filters)
- Chemical dosing (antiscalants, biocides, coagulants)
- Sedimentation tanks
- Ultrafiltration (UF) for more sophisticated treatment
A well-designed pre-treatment system reduces operational costs, extends the life of downstream components, and improves overall efficiency.
2. Desalination Core (RO or Thermal Technology)
Industrial desalination systems primarily rely on their core desalination unit. It is the stage where the actual separation of salt from seawater or brackish water. This is divided into two primary methods:
a. Reverse Osmosis (RO)
RO is a membrane-based technology where pressurized feedwater is forced through semi-permeable membranes, separating salts and impurities. It is widely used due to its energy efficiency and compact footprint. Key components here include:
- High-pressure pumps
- Membrane modules
- Pressure vessels
- Energy recovery devices (ERDs)
b. Thermal Desalination
In thermal methods like MSF or MED, the salts get left behind once water is heated and evaporated. Fresh water is obtained after condensing the vapor. These systems prefer places with plentiful waste heat or steam.
Whether to go with RO or thermal desalination depends upon feedwater quality, energy availability, and specific industrial requirements.
3. Energy Recovery Systems
Energy consumption is one of the significant operating costs in industrial desalination systems, especially in RO-based setups. Efficient systems incorporate Energy Recovery Devices (ERDs) that capture and reuse the hydraulic energy from the high-pressure brine stream.
Types of ERDs include:
- Pressure exchangers
- Turbochargers
- Pelton wheels
Using ERDs, operators can reduce energy consumption by up to 60%, significantly lowering operating expenses and improving system sustainability.
4. Post-Treatment Unit
When the desalinated water is generated, it sometimes needs conditioning before its application to industrial processes. The post-treatment ensures that the water is of quality specification, including pH, mineral levels, and microbial quality.
Post-treatment operations can include:
- Remineralization (the addition of calcium and magnesium)
- pH adjustment (by the addition of lime or CO₂)
- Chlorination or UV disinfection
- Deaeration or degassing
This phase ensures that the water is clean and chemically normalized for its desired application, whether in cooling systems, boilers, or production lines.
5. Brine Management System
Desalination generates a highly concentrated waste stream known as Brine, which has to be dealt with responsibly to ensure minimal environmental effects. A sound brine management system is primely important in sustainable industrial desalination systems.
Some of the standard brine disposal and management methods are:
- Discharge into the sea with adequate dilution and dispersion
- Crystallization or concentration of Brine
- ZLD technologies
- Reuse in other industrial processes.
New technologies are coming up that could extract valuable minerals from Brine, convert waste into products, and make it economical.
6. Control and Monitoring Systems
Automation and real-time monitoring must be in place to ensure reliability and efficiency in industrial desalination systems. Modern systems have installed SCADA platforms and smart sensors, and they typically offer data for such parameters as flow rate, pressure, salinity, temperature, and membrane performance.
The advantages of effective monitoring include the following:
- Proactive maintenance
- Energy efficiency reduction
- Accurate reporting for legal compliance
With the onset of Industry 4.0, IoT and AI-based analytics can further improve predictive maintenance and optimize system performance.
7. Infrastructure and Materials
Industrial desalination systems face severe salinity, pressure, and temperature conditions. The selection of materials for pipelines, tanks, membranes, and structures is critical to ensuring system durability and lifespan.
Materials used are typically:
- Duplex stainless steel
- Super austenitic alloys
- Titanium (in thermal units)
- High-performance polymers
Using corrosion-resistant and high-strength materials ensures minimal maintenance and a longer operational lifespan.
Also Read : Retrofit or Replace? Upgrading Your Diesel Generator Control Panel
Conclusion
Industrial desalination systems are critical for supporting industries in water-scarce regions, helping ensure a steady supply of clean water for operational needs. An efficient system is not just about converting seawater to freshwater; it’s about optimizing every stage — from pre-treatment to post-treatment, energy recovery to brine management.
By investing in advanced technologies, high-quality materials, and intelligent automation, industries can build desalination systems that are sustainable, cost-effective, and resilient. As global water demand rises, the efficiency and innovation within these key components will define the future of industrial water treatment.
